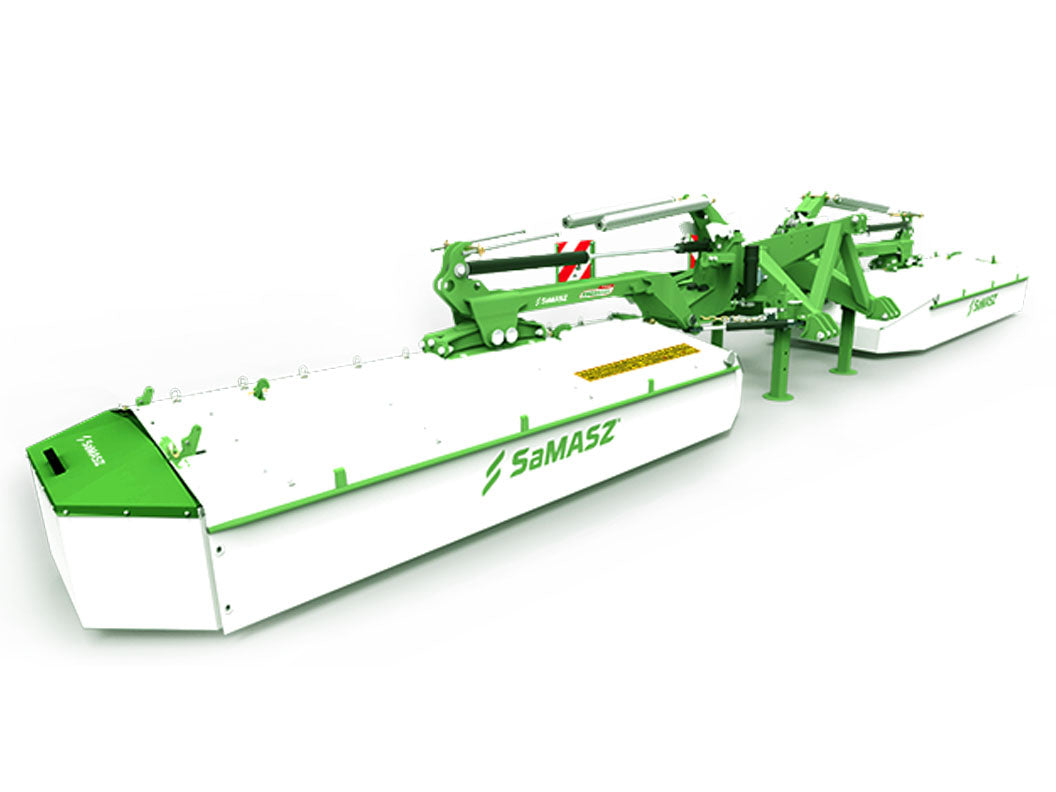

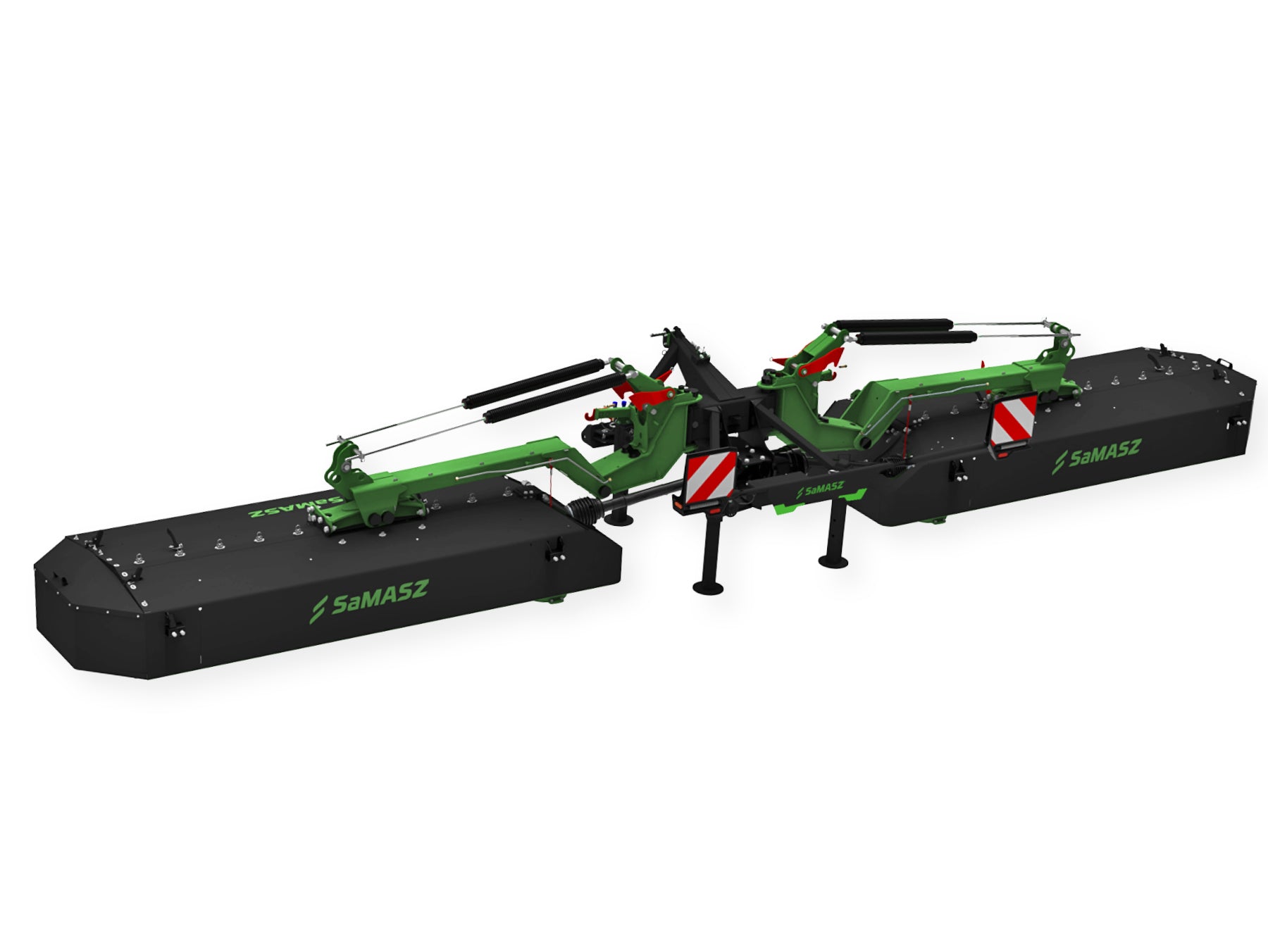

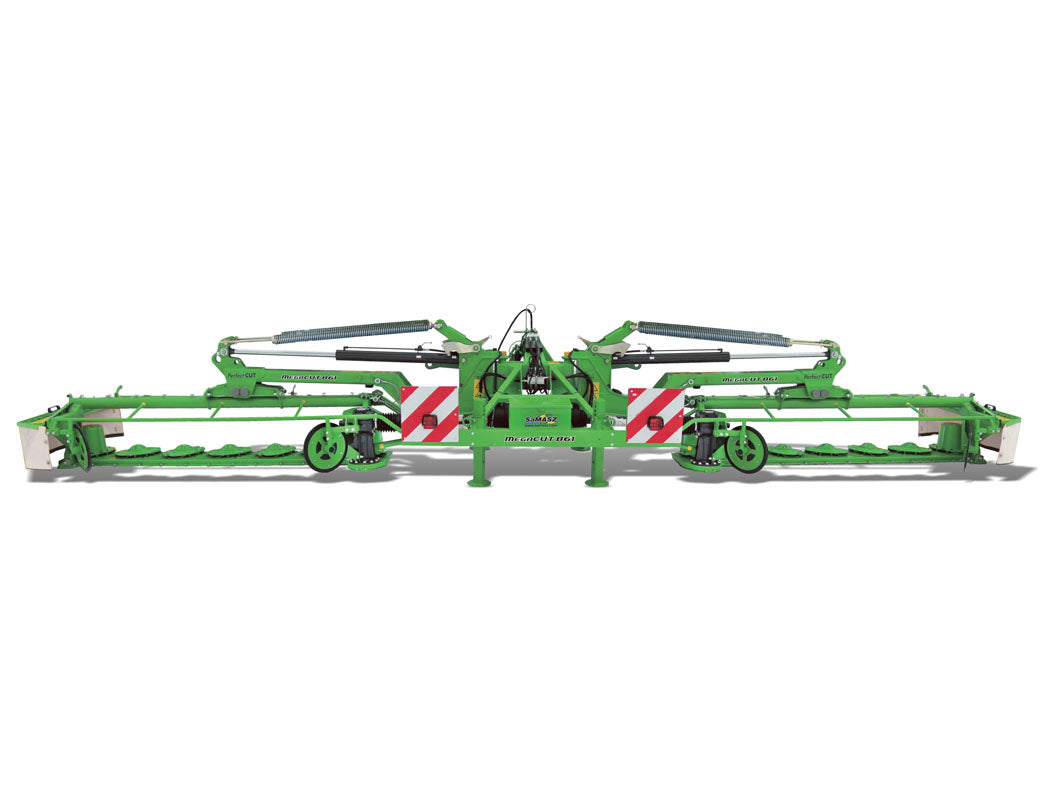

KDD 861, KDD 912, KDD 941

Centre hung, contour following, gear driven

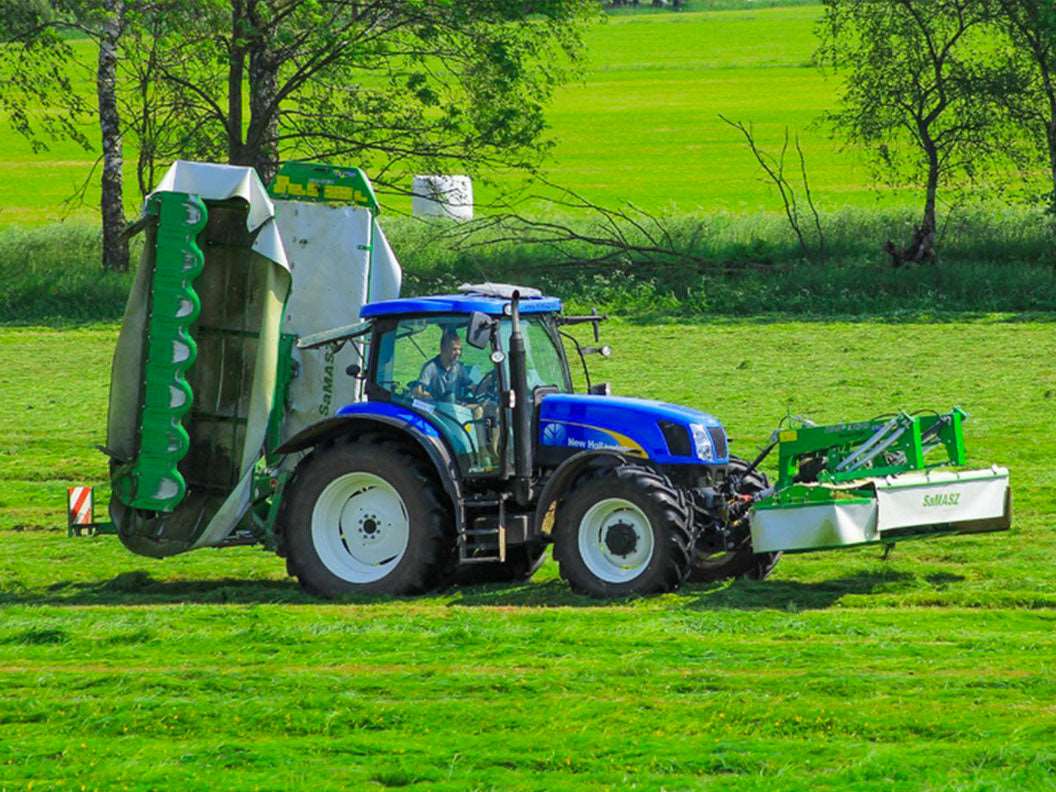

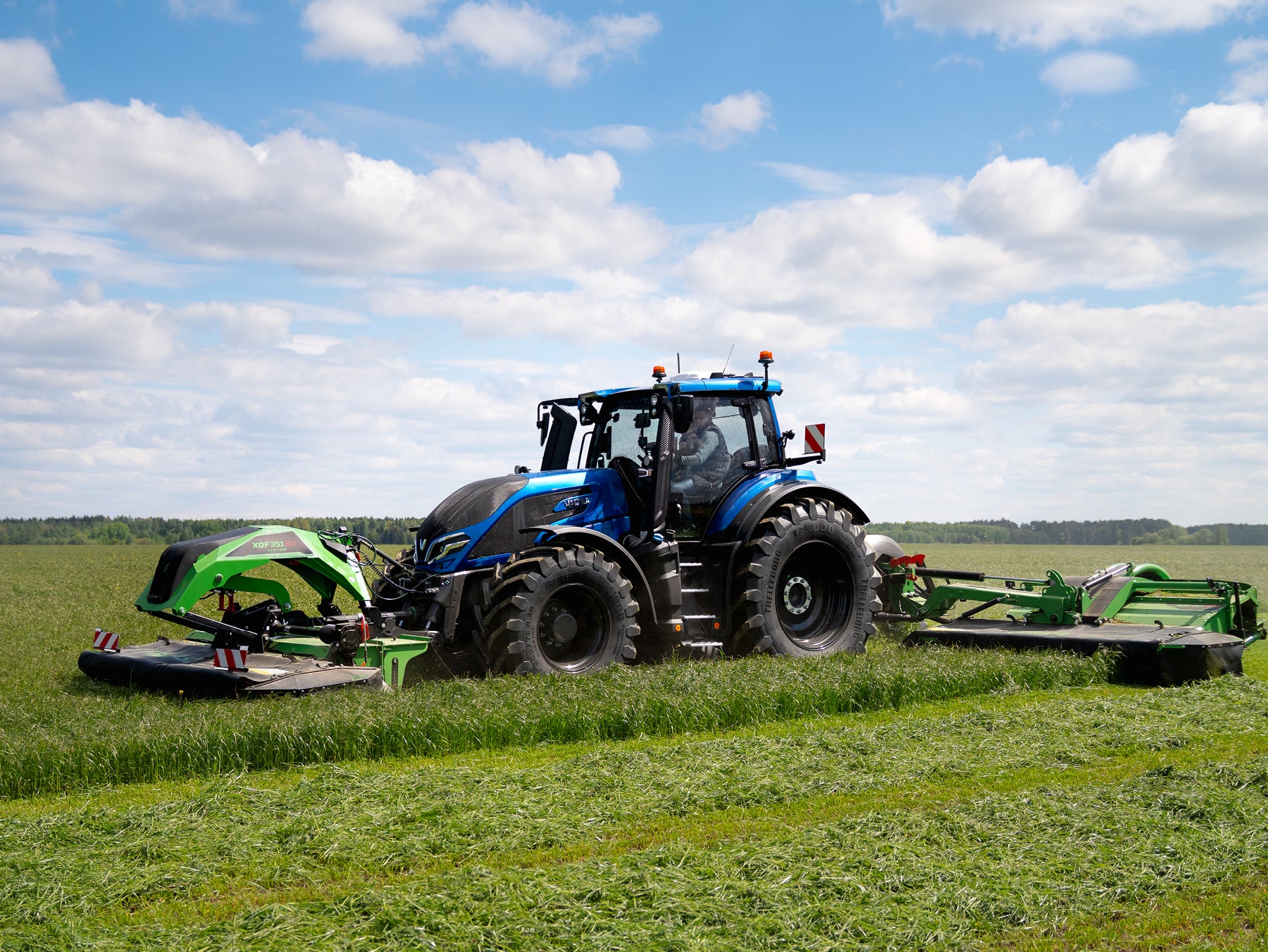

MegaCUT is a set of mowers for farmers, who value their time and money. MegaCUT is a perfect solution for large farms and contractors. Thanks to their high productivity and working width, cutting of large areas does not take a great deal of time.

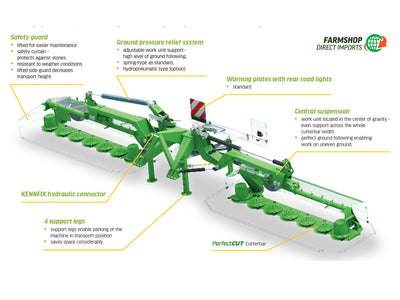

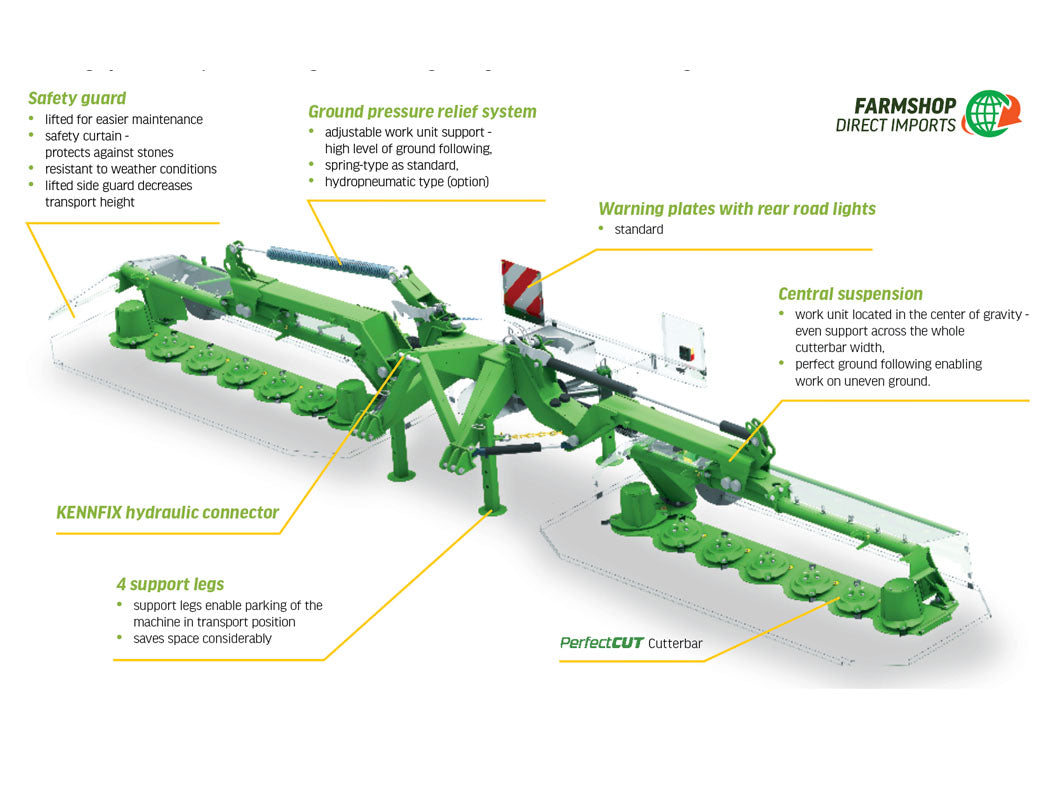

Central suspension

• Work unit located in the center of gravity - even support across the whole  cutterbar width,
• Perfect ground following enabling work on uneven ground.

PTO shaft with friction clutch

• Drive from the central gearbox to the cutterbars is transmitted through PTO shafts with overrunning friction clutch, which secure cutterbars from damage.

Advantages and equipment of MegaCut set:

• PerfectCUT cutterbars with quick knife replacement system
• Protection against stones (quick disc module replacement in case of obstacle collision)
• Central suspension
• Support springs reduce ground pressure and limit mowing disturbances
• Hydropneumatic suspension as an option
• Integrated gearbox (only with conditioner)
• Hydraulic safety breakaway device protects the mower against hitting immovable obstacles. In the event of hitting an immovable obstacle the cutterbar folds back and at the same time rises about 50 cm (20”). The cutterbar automatically comes back to its working position once the obstacle is passed.
• Adjustable swath guides

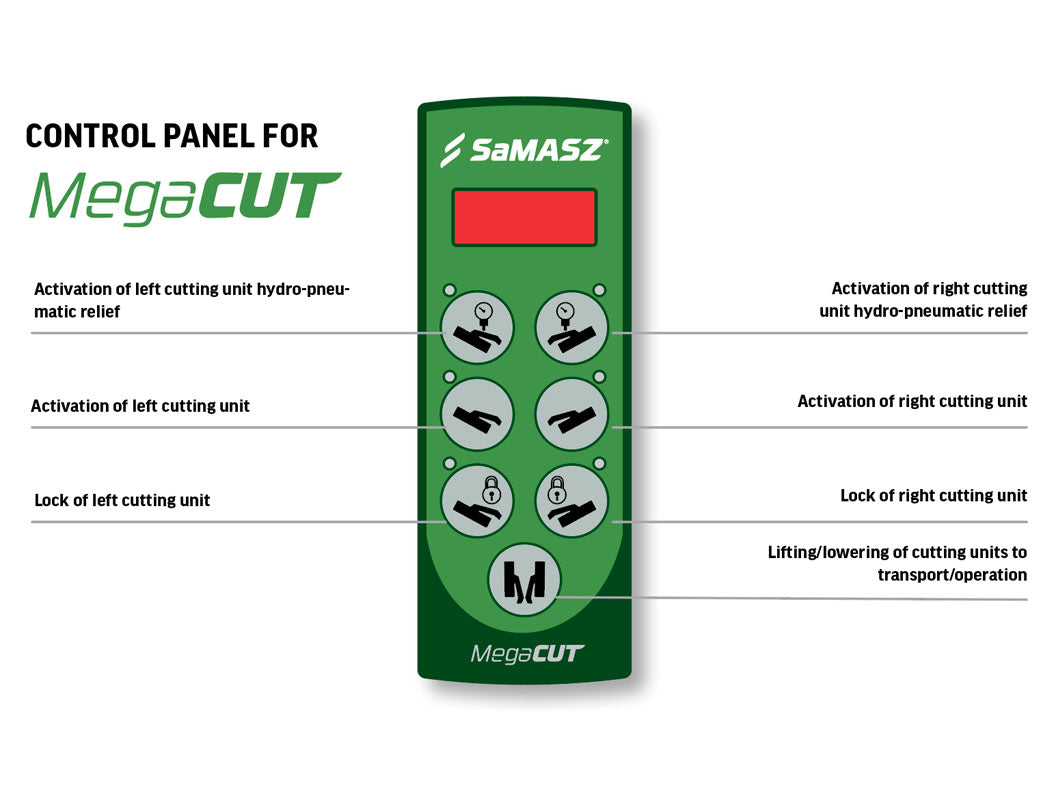

• Electronic control panel
• Lock mechanism for for safe transport transport
• 3-point hitch Cat. II and III
