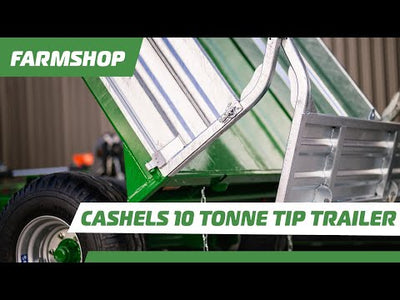

Cashels Multi-Purpose Drop-side 10T Trailer


Follow us on Facebook to see customer testimonials, product demonstrations, deals and much more.

Cashels Multi-Purpose Dropside Trailers have been developed to cater for general everyday haulage work. Built with quality and strength in mind, these trailers are perfect for the transportation of sand, gravel, topsoil, fertiliser, grain and more.

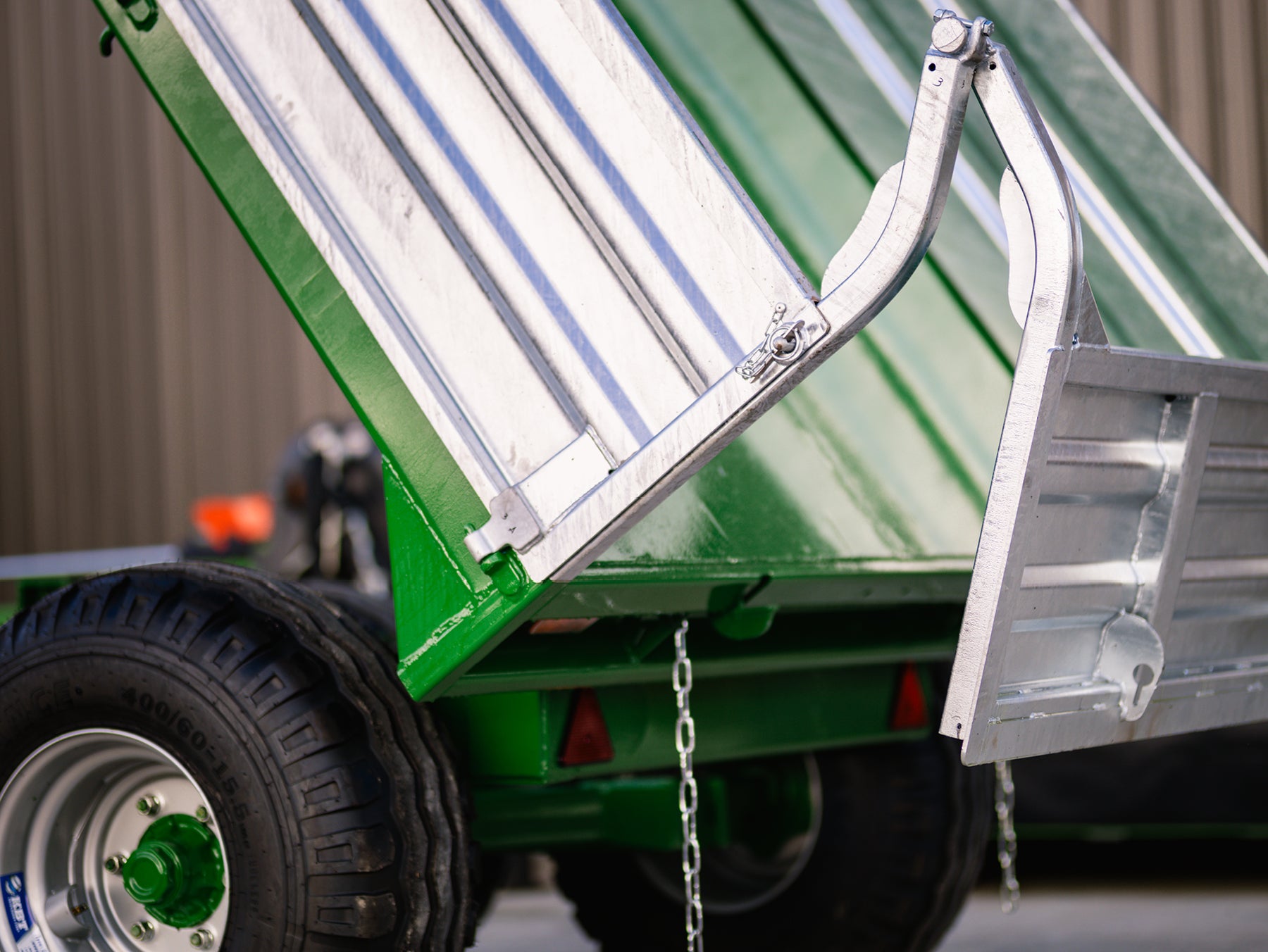

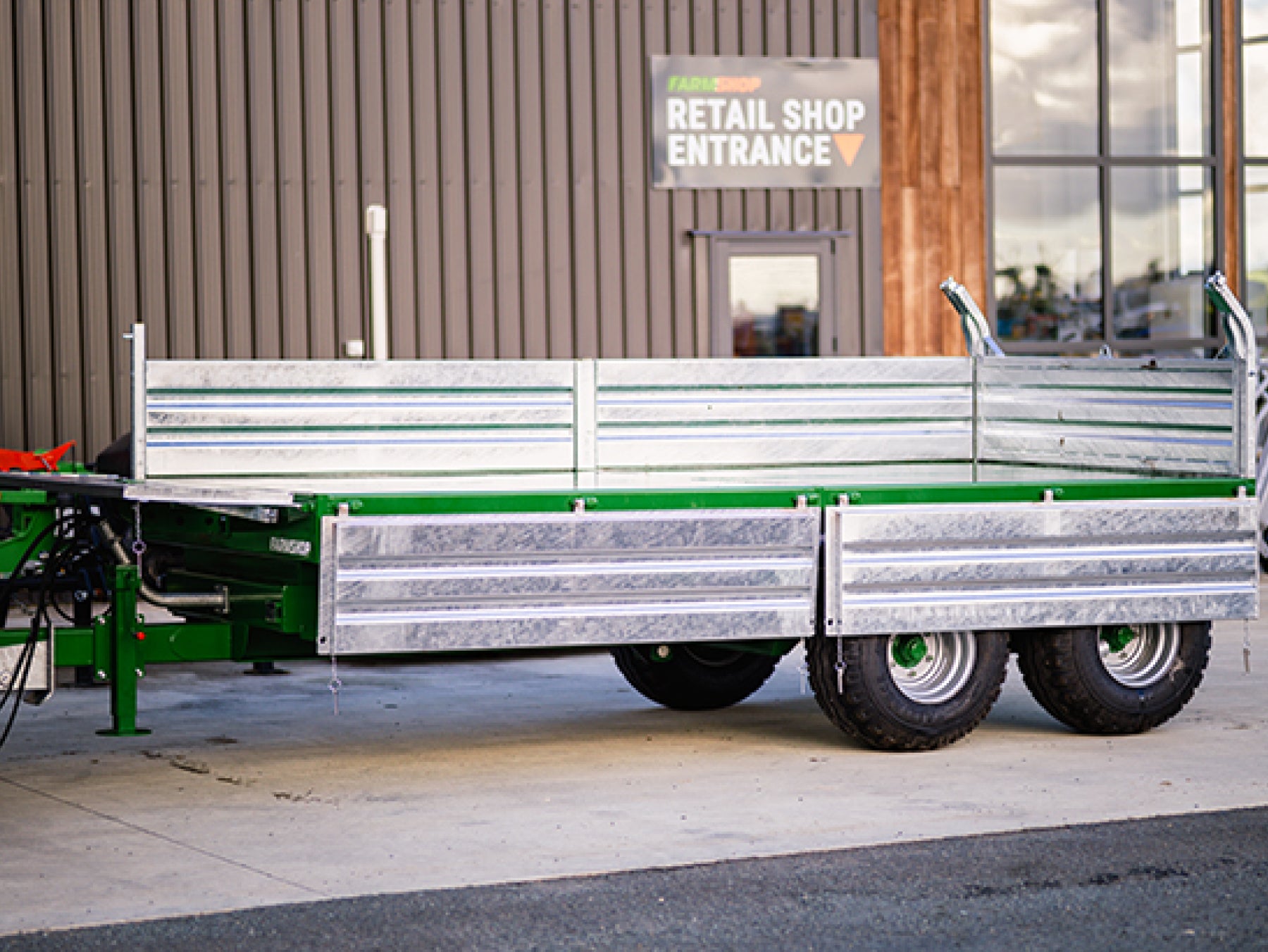

The trailers consist of a robust lower chassis fabricated from heavy duty 180mm channel and incorporate a 150x150mm structural box section drawbar. This chassis is fitted with a heavy duty bogey axle as standard. A durable tipping body has easily removable 2.5mm hinged drop sides, enabling the trailers to be used as flatbeds. The floors are fabricated from 4mm mild steel, sitting on heavy duty cross member channels.

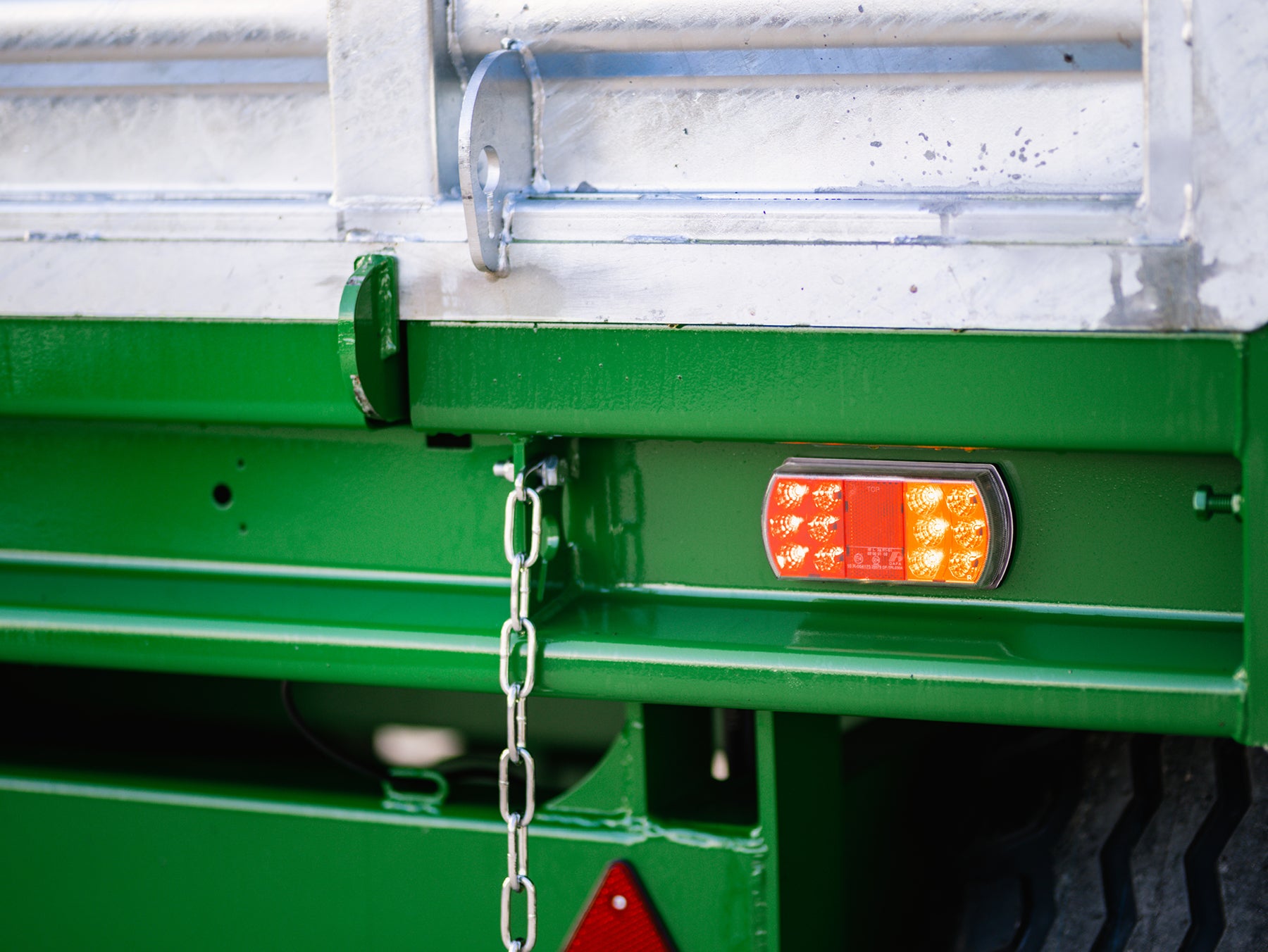

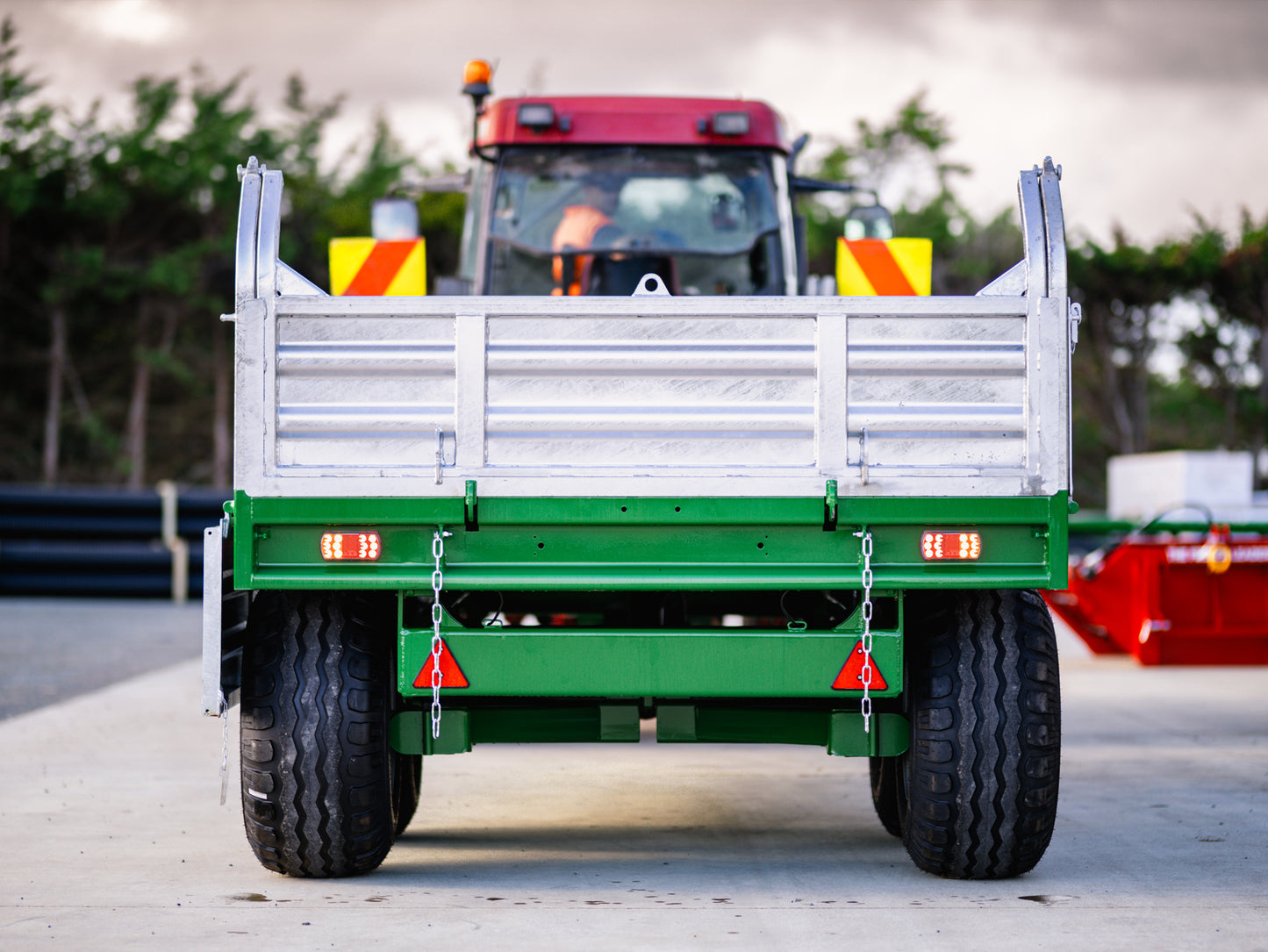

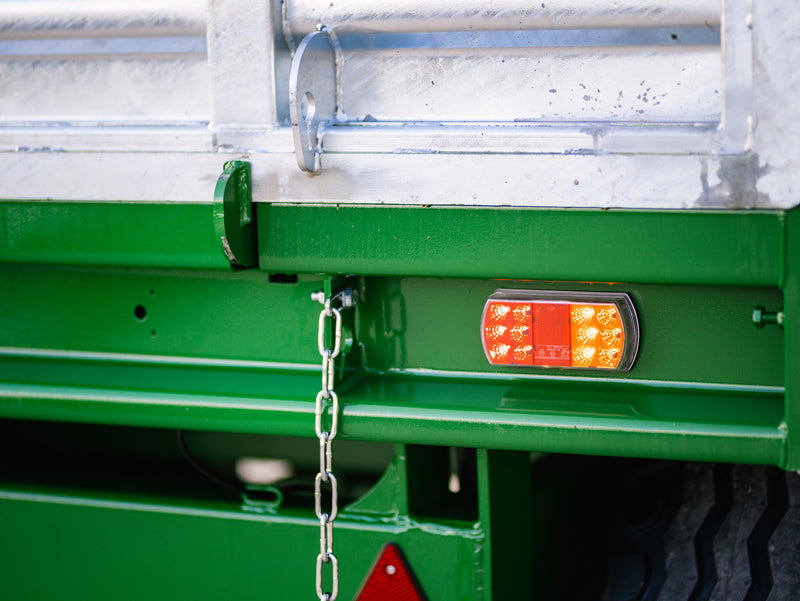

Road legal lights are fitted inside the rear bumpers protecting them from harsh working conditions. Strong attention to detail emphasises the superior build and quality of these products.

Features & Benefits:

  • 70mm ADR 6-Stud axles
  • Spreader chains
  • Hydraulic tail gate
  • Hydraulic brakes
  • Innovative folding stool

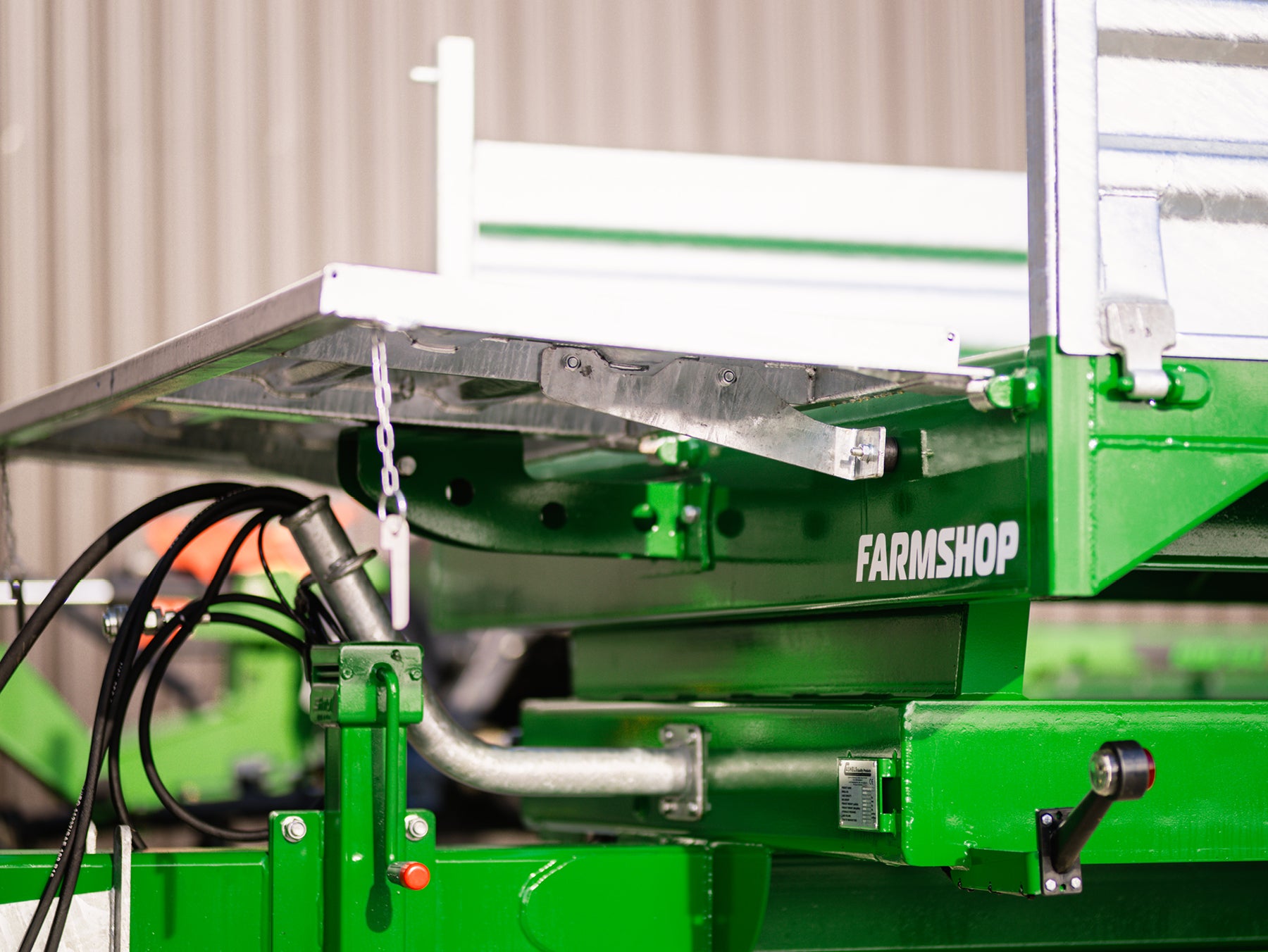

  • 8 Tonne two-stage tipping ram
  • Re-enforced pivot points

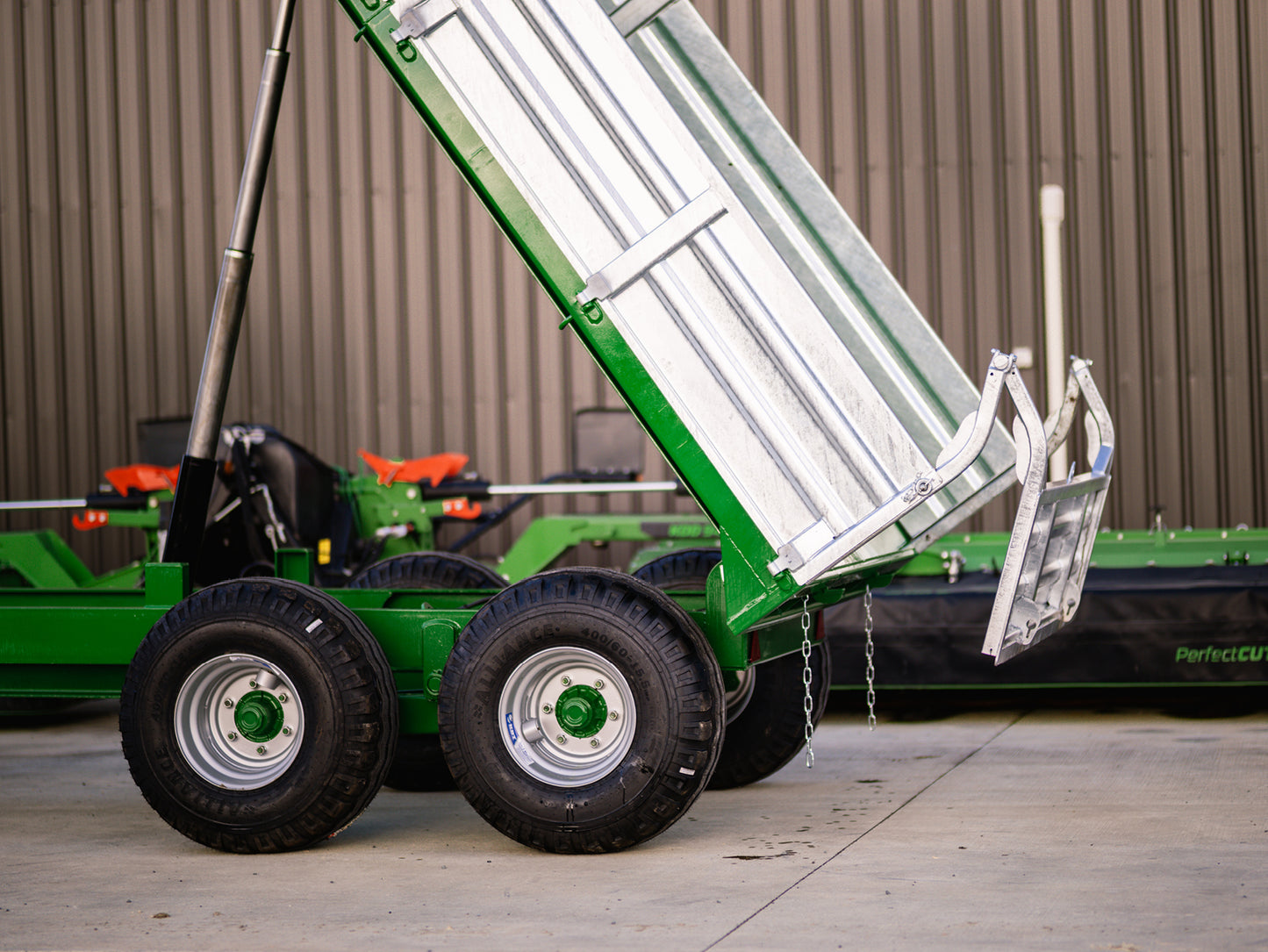

  • Tapered tipping body for ease of load discharge
  • Height Side Boards 500mm
  • Height Front 650mm


  • Swivel towing eye
  • 5mm Floor Plate
10T Deck Measurements
  • 2.25m Wide
  • 4.2m Length
