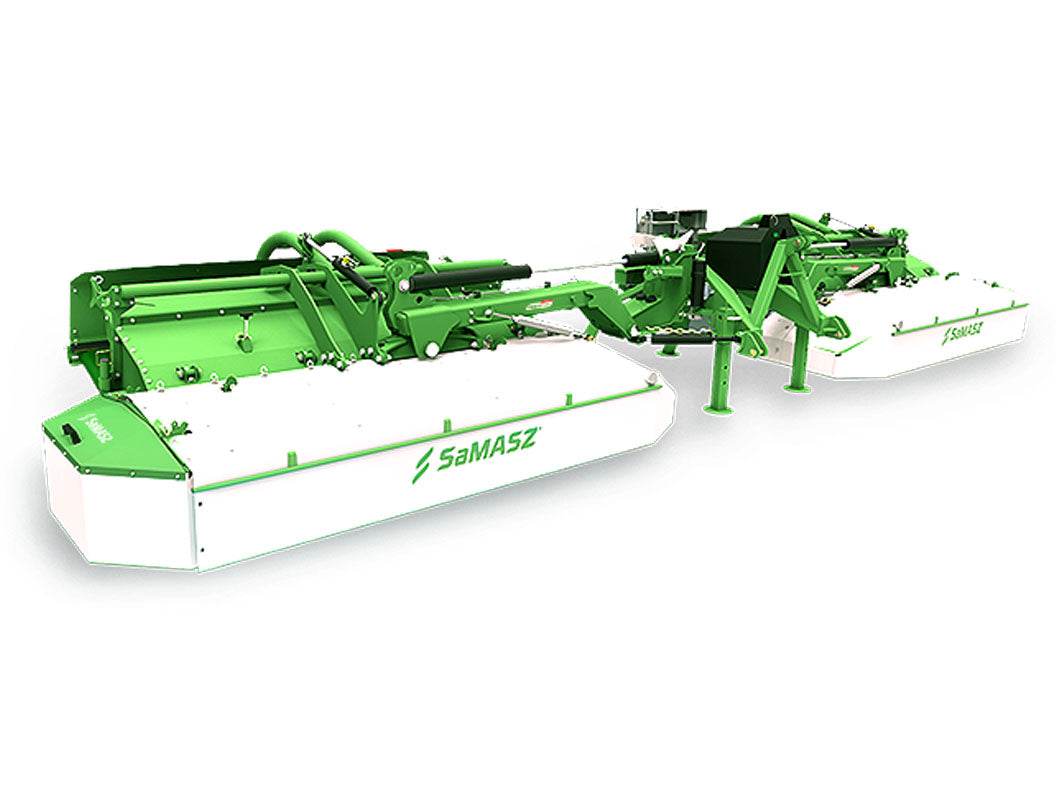

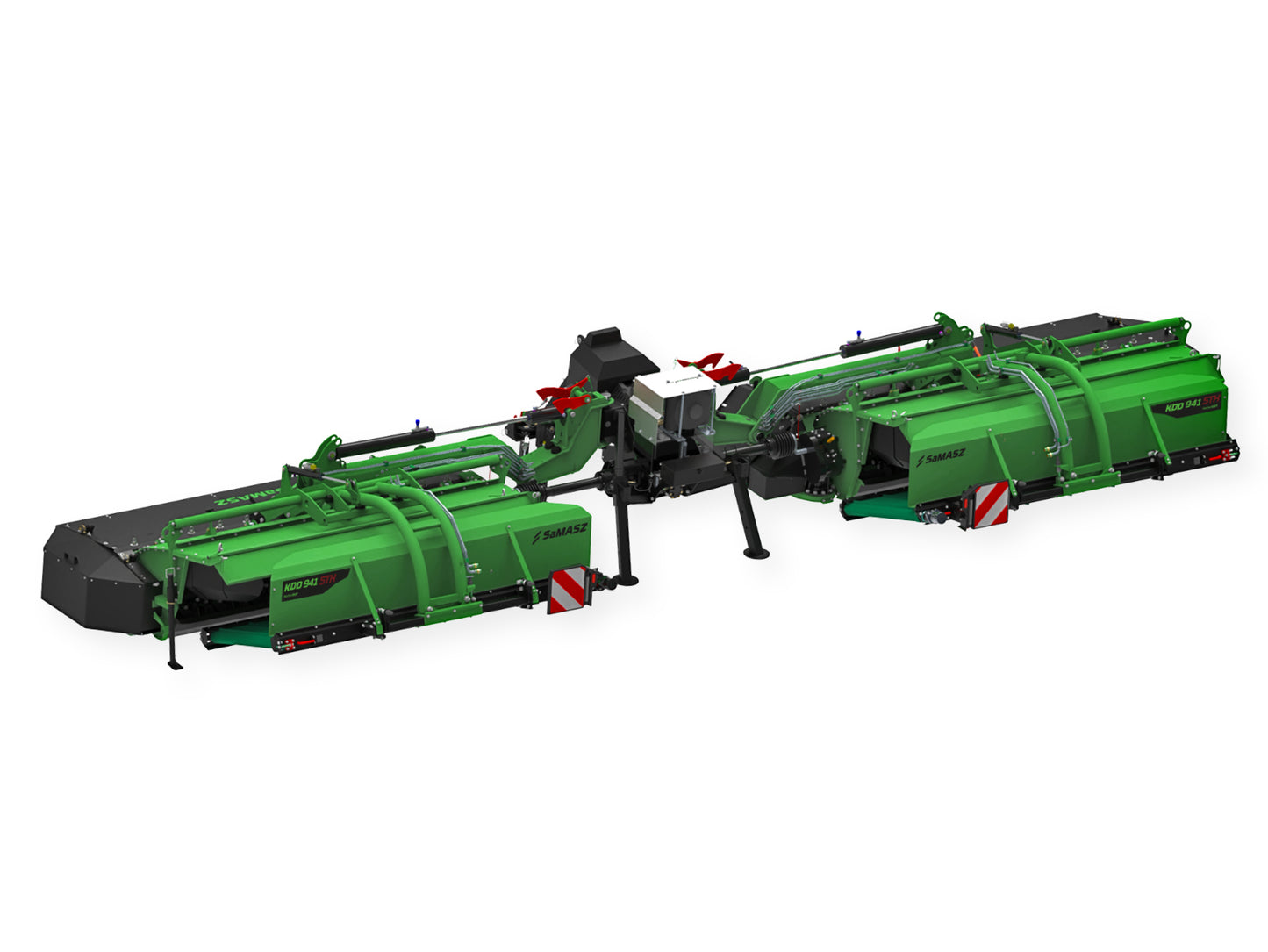

KDD 861 S / ST, KDD 941 S / ST

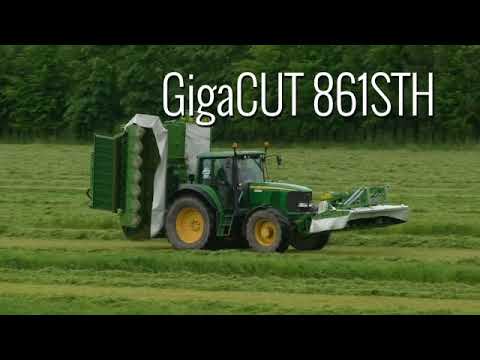

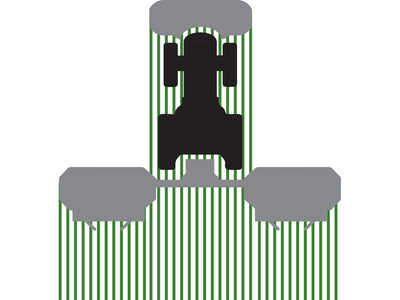

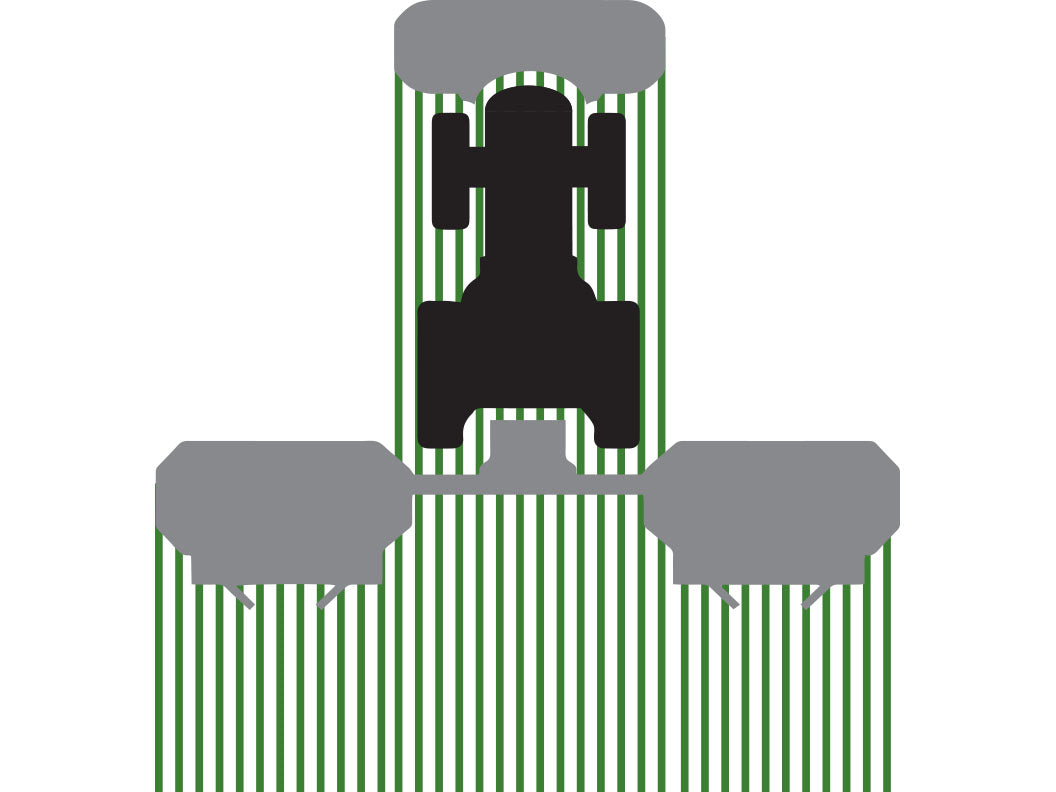

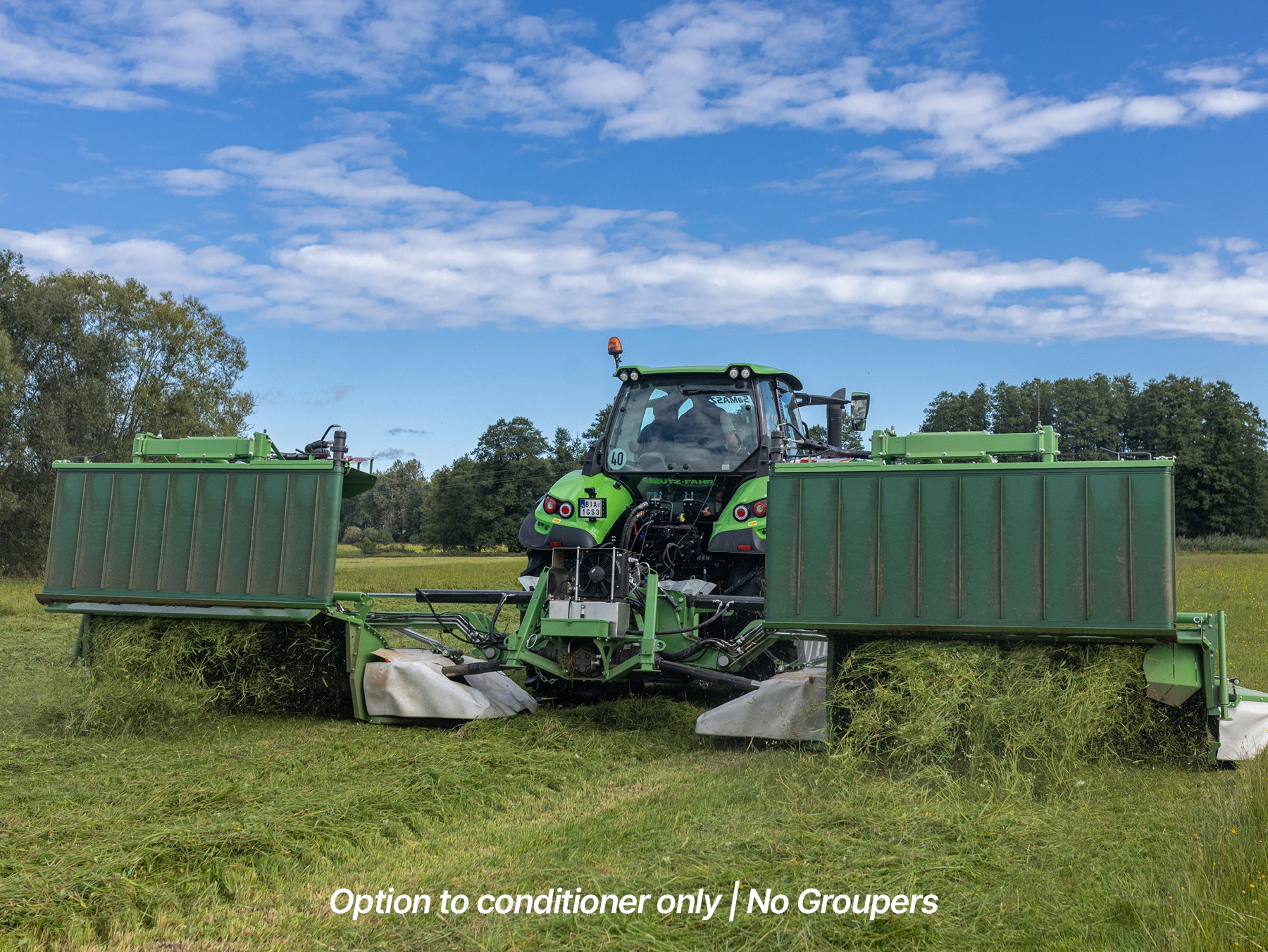

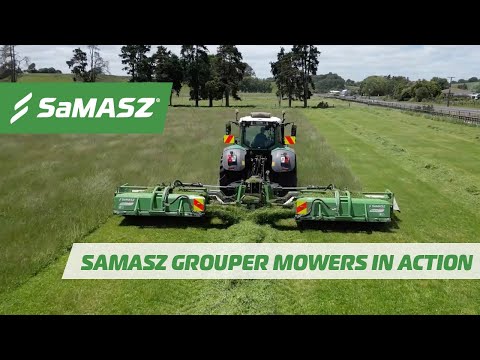

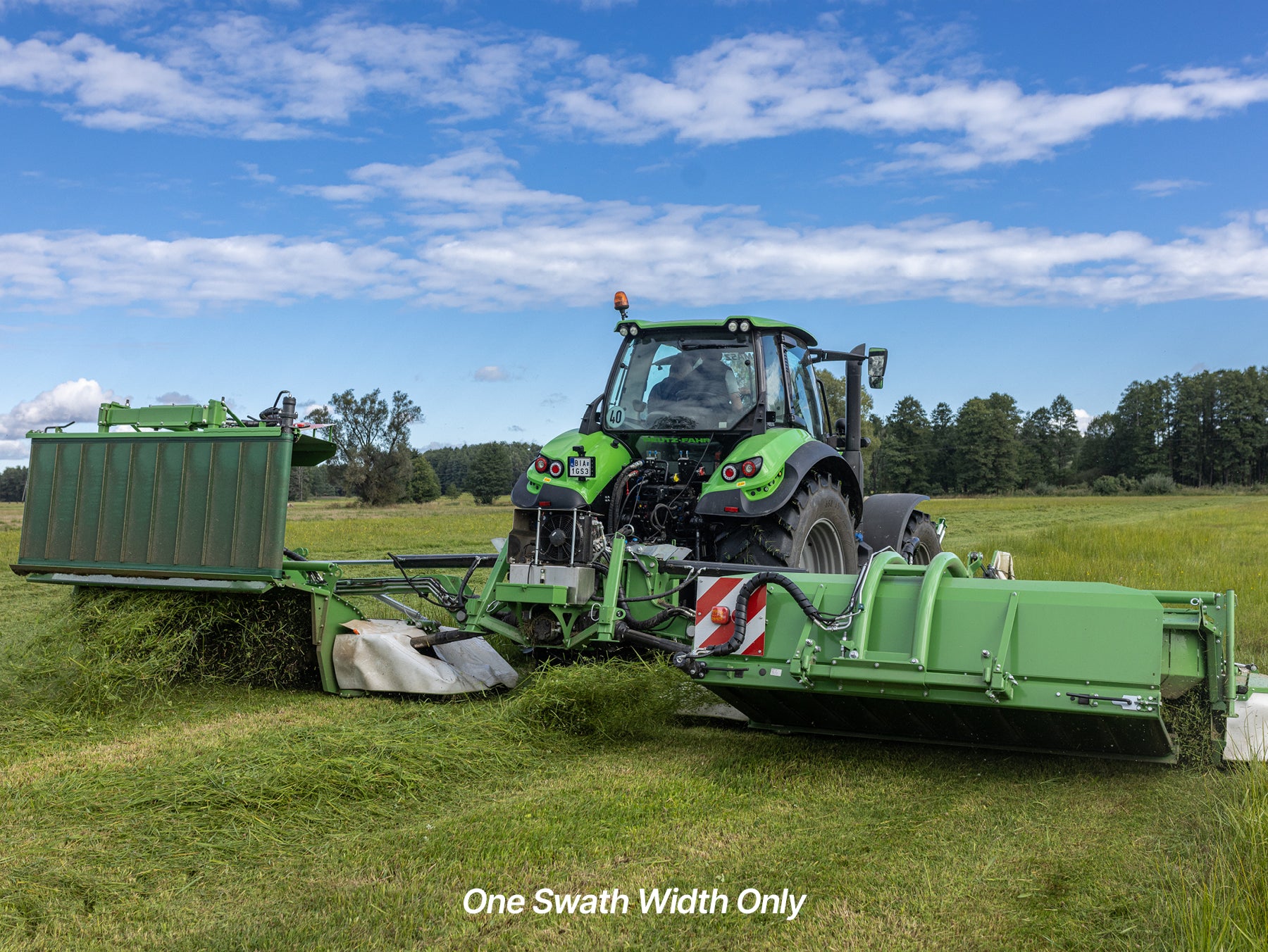

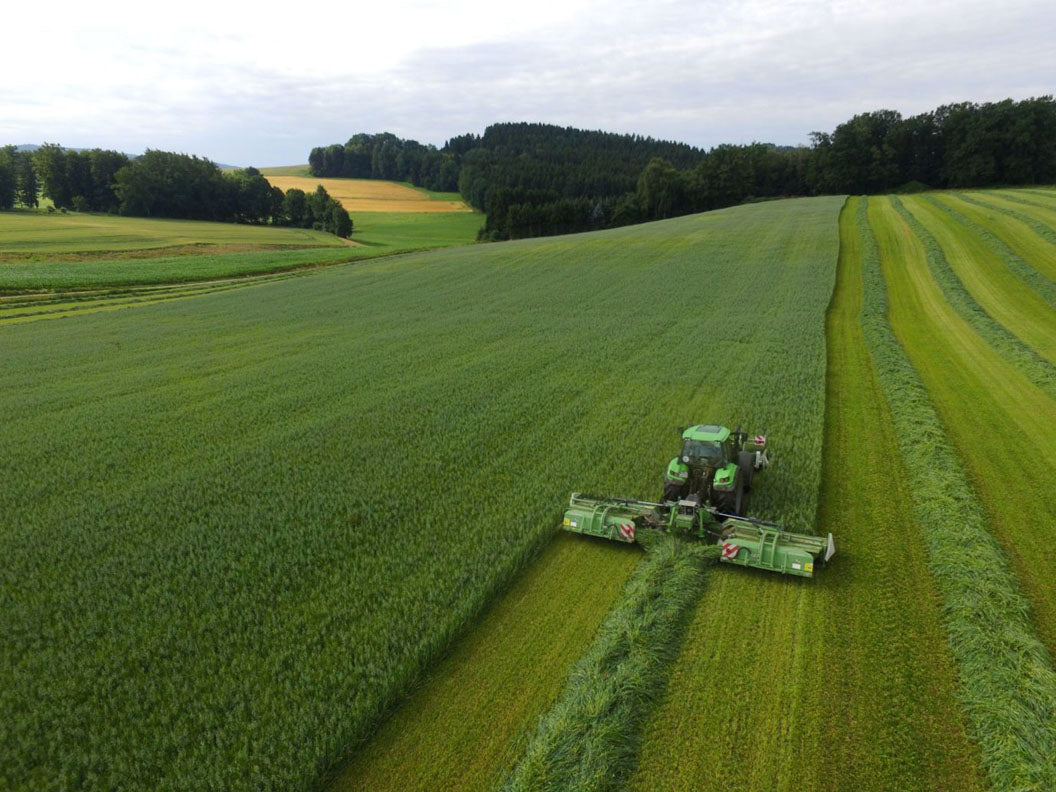

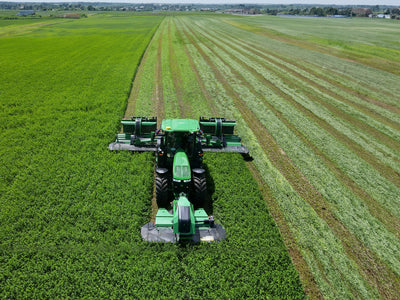

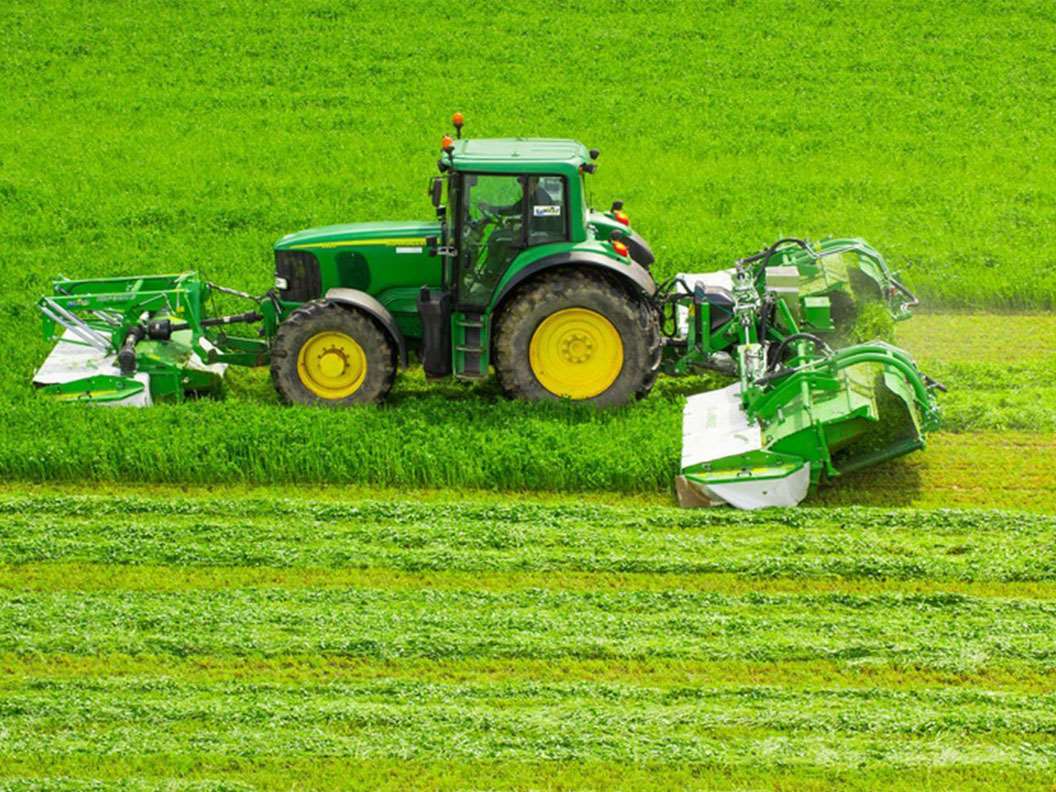

Designed to work on large farms in the toughest conditions possible. GigaCUT combination consists of double-sided mower KDD 861 S/ST or 941 S/ST and front mower KDF300 S/W or KDF 340 S/W + belt conveyors. Owing to tine or roller conditioner, use of tedder and rake is no longer necessary besides that is a perfect alternative to self-propelled mowers.

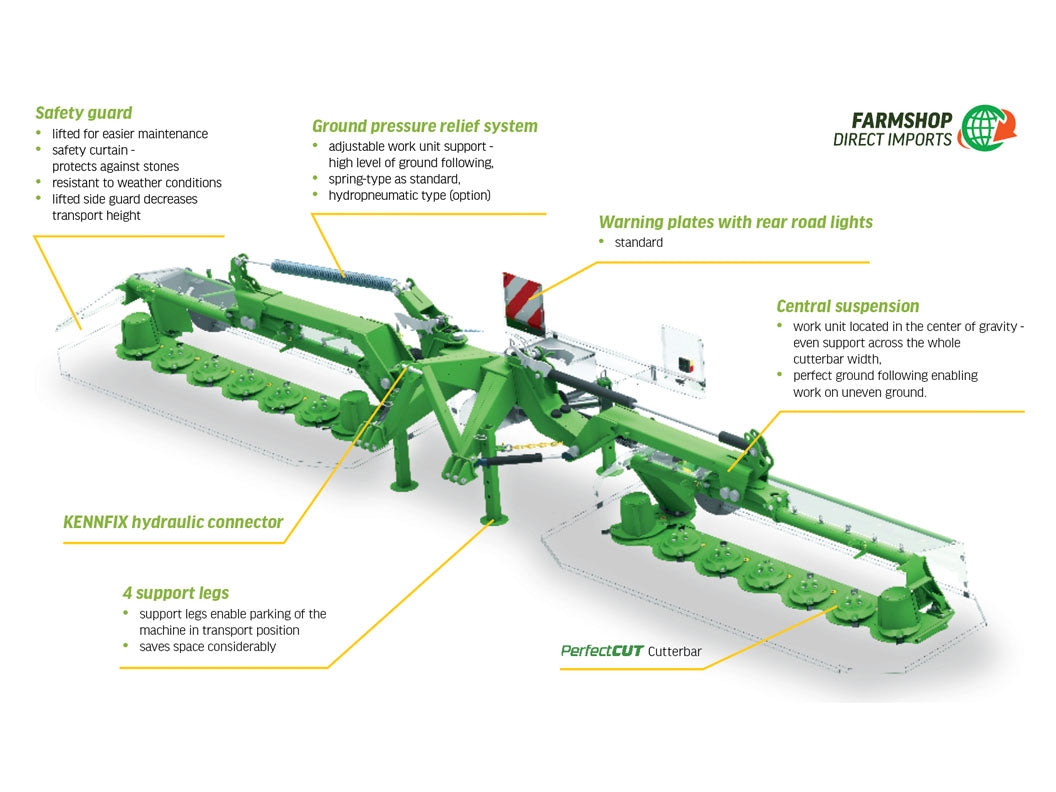

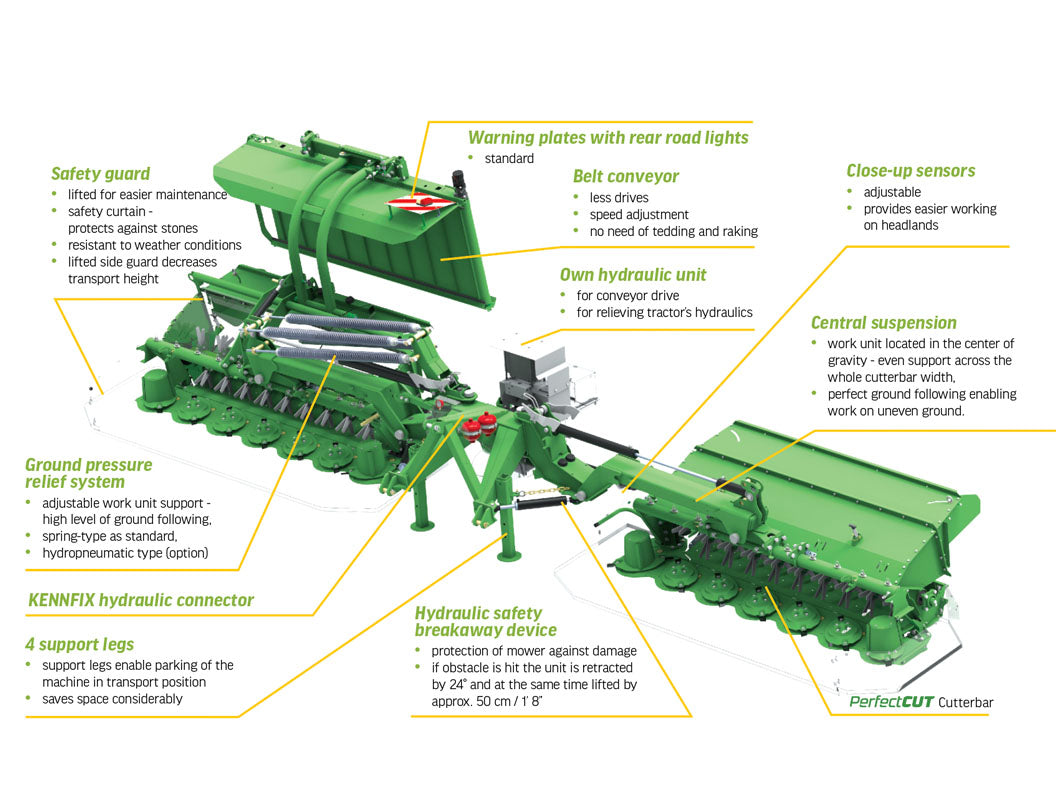

- Work unit located in the center of gravity - even support across the whole cutterbar width,
- Perfect ground following enabling work on uneven ground.
PTO shaft with friction clutch
- Drive from the central gearbox to the cutterbars is transmitted through PTO shafts with overrunning friction clutch, which secure cutterbars from damage.
Advantages and equipment of MegaCut set:
- PerfectCUT cutterbars with quick knife replacement system

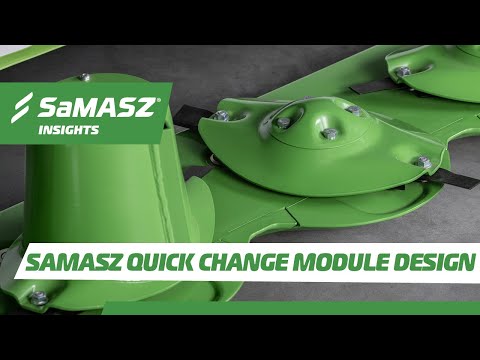

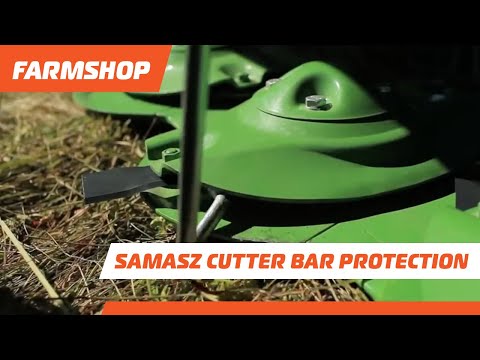

- Protection against stones (quick disc module replacement in case of obstacle collision)
- Central suspension
- Support springs reduce ground pressure and limit mowing disturbances
- Hydropneumatic suspension as an option
- Integrated gearbox (only with conditioner)
- Hydraulic safety breakaway device protects the mower against hitting immovable obstacles. In the event of hitting an immovable obstacle the cutterbar folds back and at the same time rises about 50 cm (20”). The cutterbar automatically comes back to its working position once the obstacle is passed.
- Adjustable swath guides

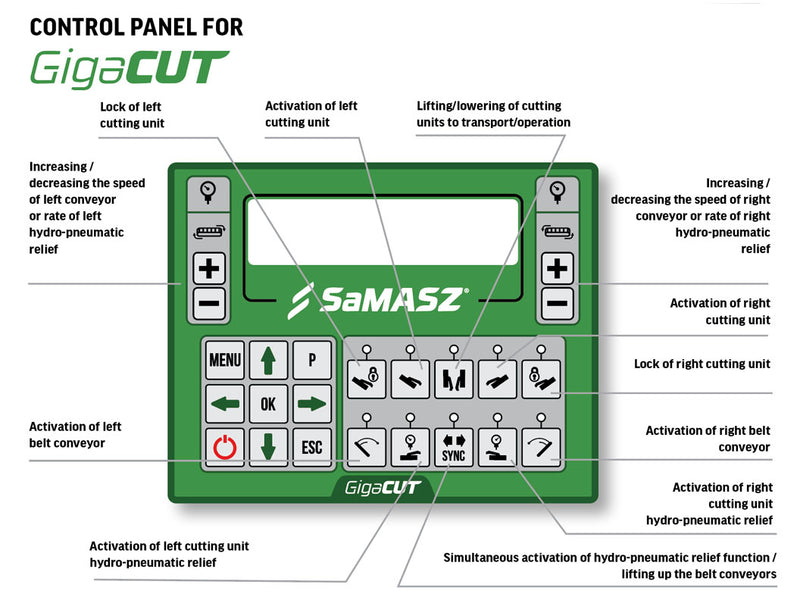

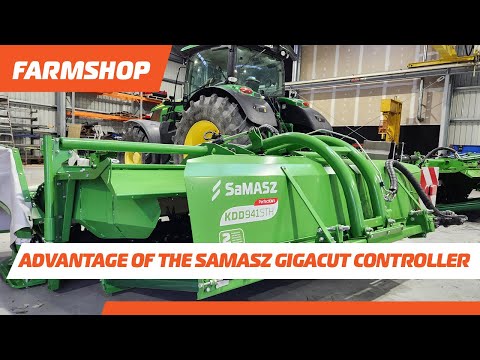

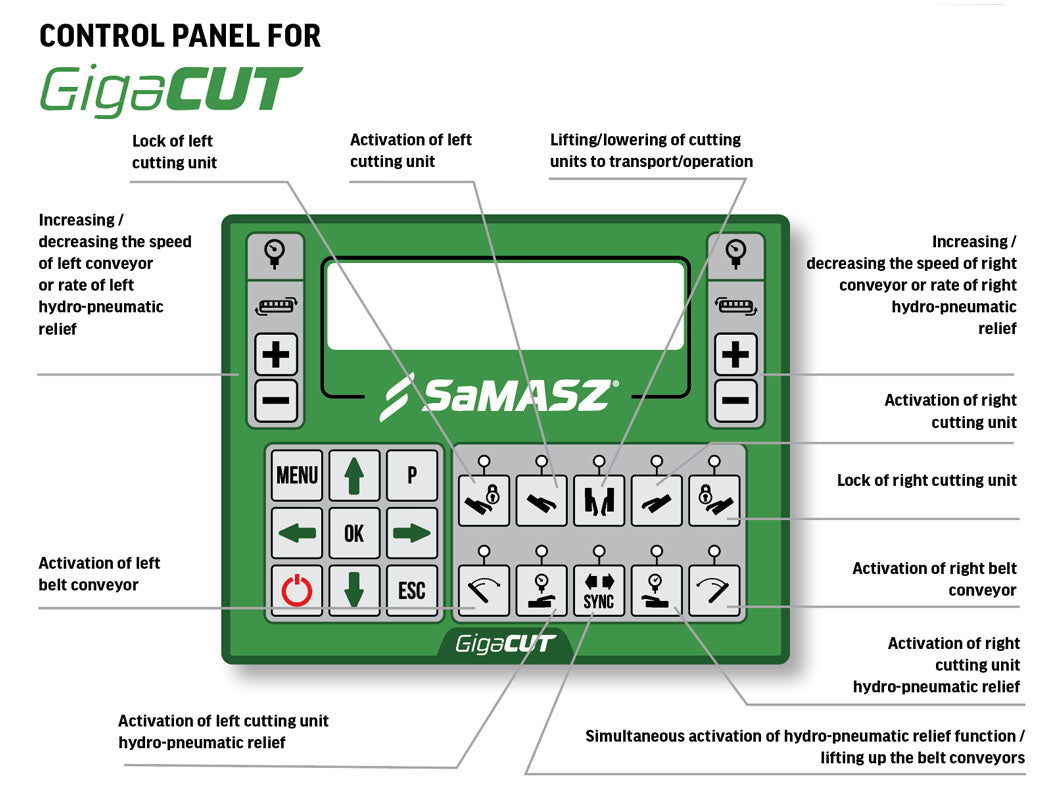

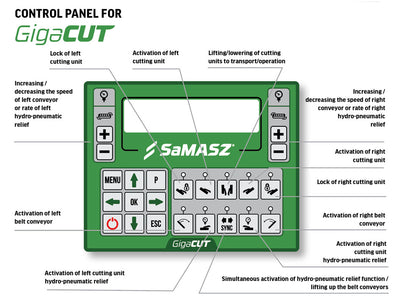

- Electronic control panel

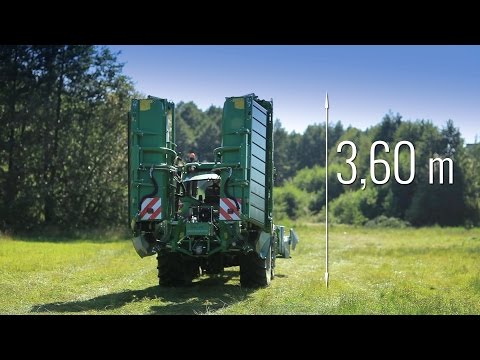

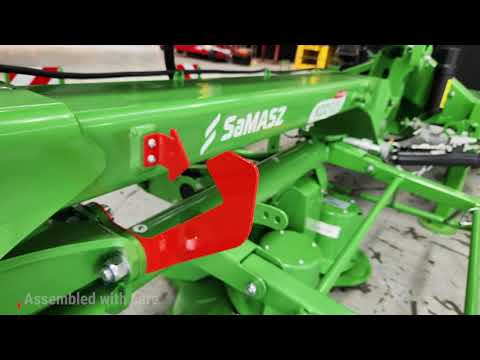

- Lock mechanism for for safe transport transport
- 3-point hitch Cat. II and III
