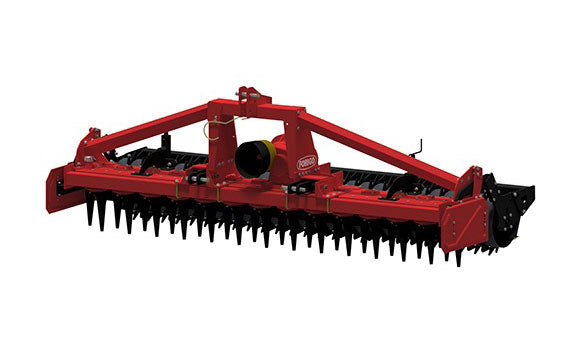

FORIGO Power Harrow F161

Model

Follow us on Facebook to see customer testimonials, product demonstrations, deals and much more.

These machines work with vertical counter rotating tines, which enable them to crumble big clumps and prepare a very well levelled seeding surface. The vertical rotating axis guarantees superior soil ventilation. Various types of rear rollers or accessories allow for adjustment of the working depth. These power harrows are designed to ensure long-lasting work performances with low power consumption and are suitable for every type of tractor.

Key features
• Universal 3 point linkage Cat. 2 & 3
• Tractor linkage swinging arms
• Multi-speed gearbox 540 - 750 - 1000 rpm PTO
• Rear PTO connection
• Monobloc tine-holder shaft hot-forged
• Special Tine system bi-directional “ZEUS” ideal for a low power absorption
• 2x Tines per rotor
• Cylindrical anti-flood tine-holder shaft
• Rear leveling clod bar PARABLOC adjustable by crank handles
• Adjustable side plates on springs
• Working depth adjustable by lateralpins regulators on rollers
• Safety front bar
• Cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke)

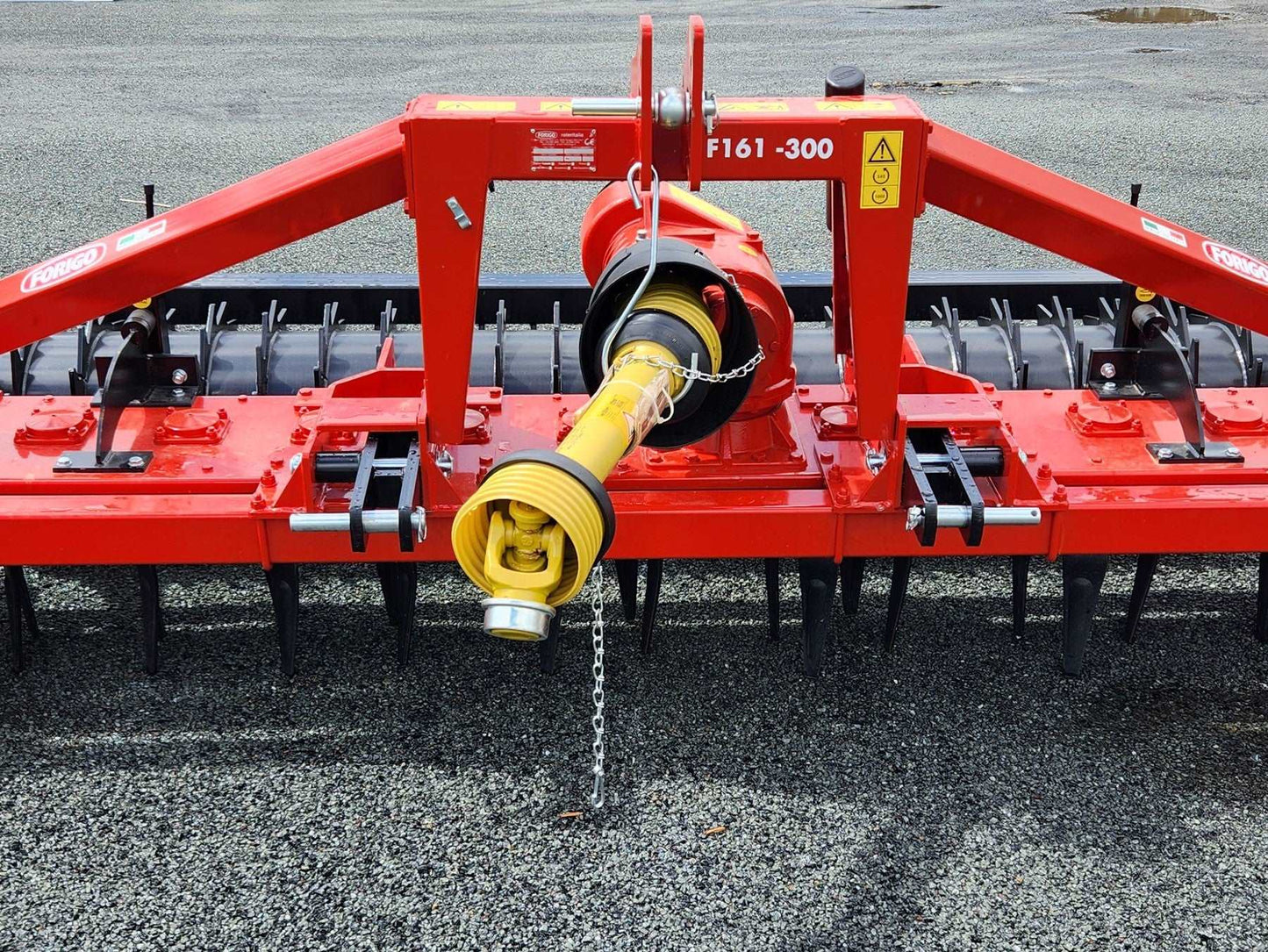

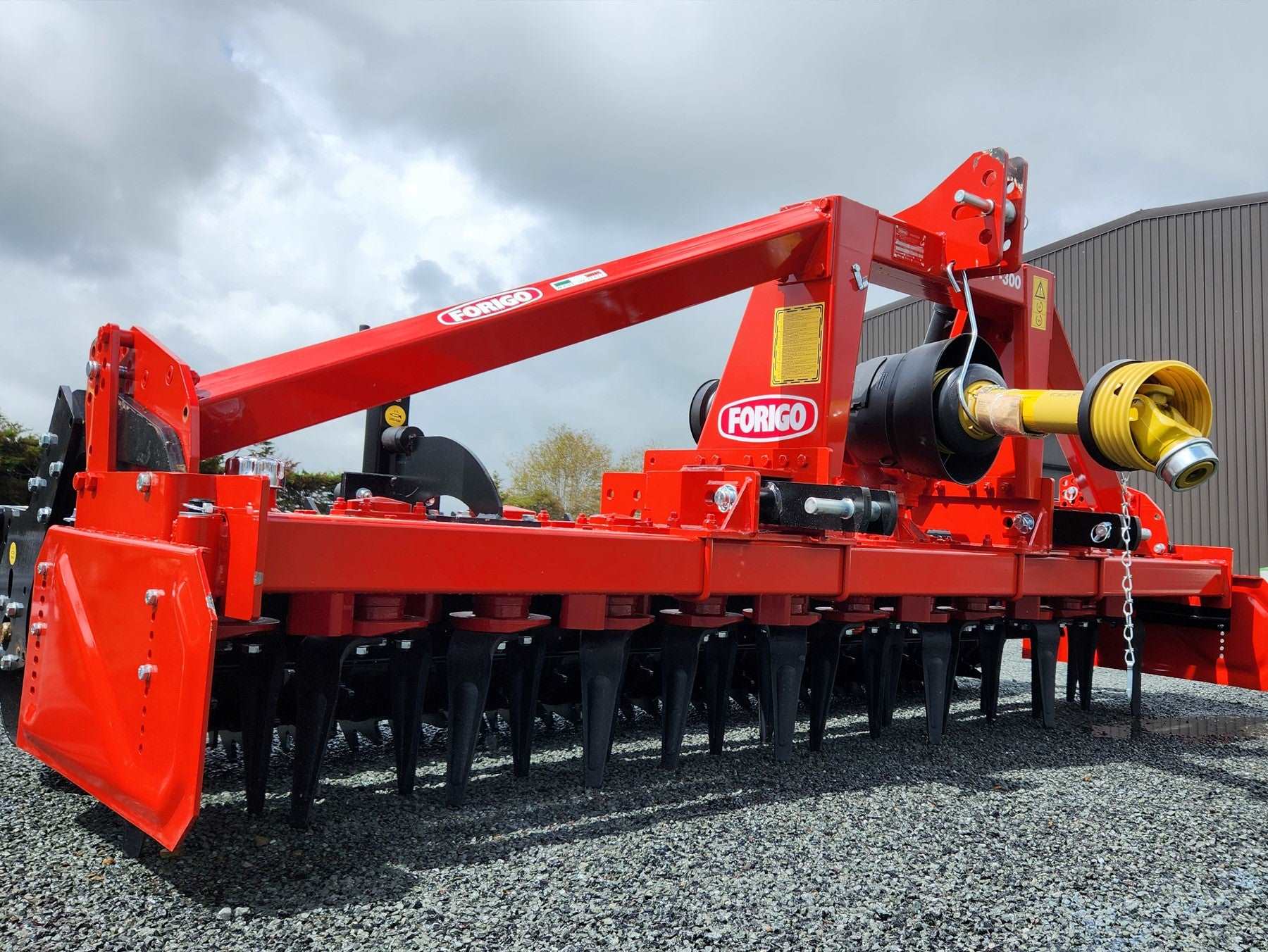

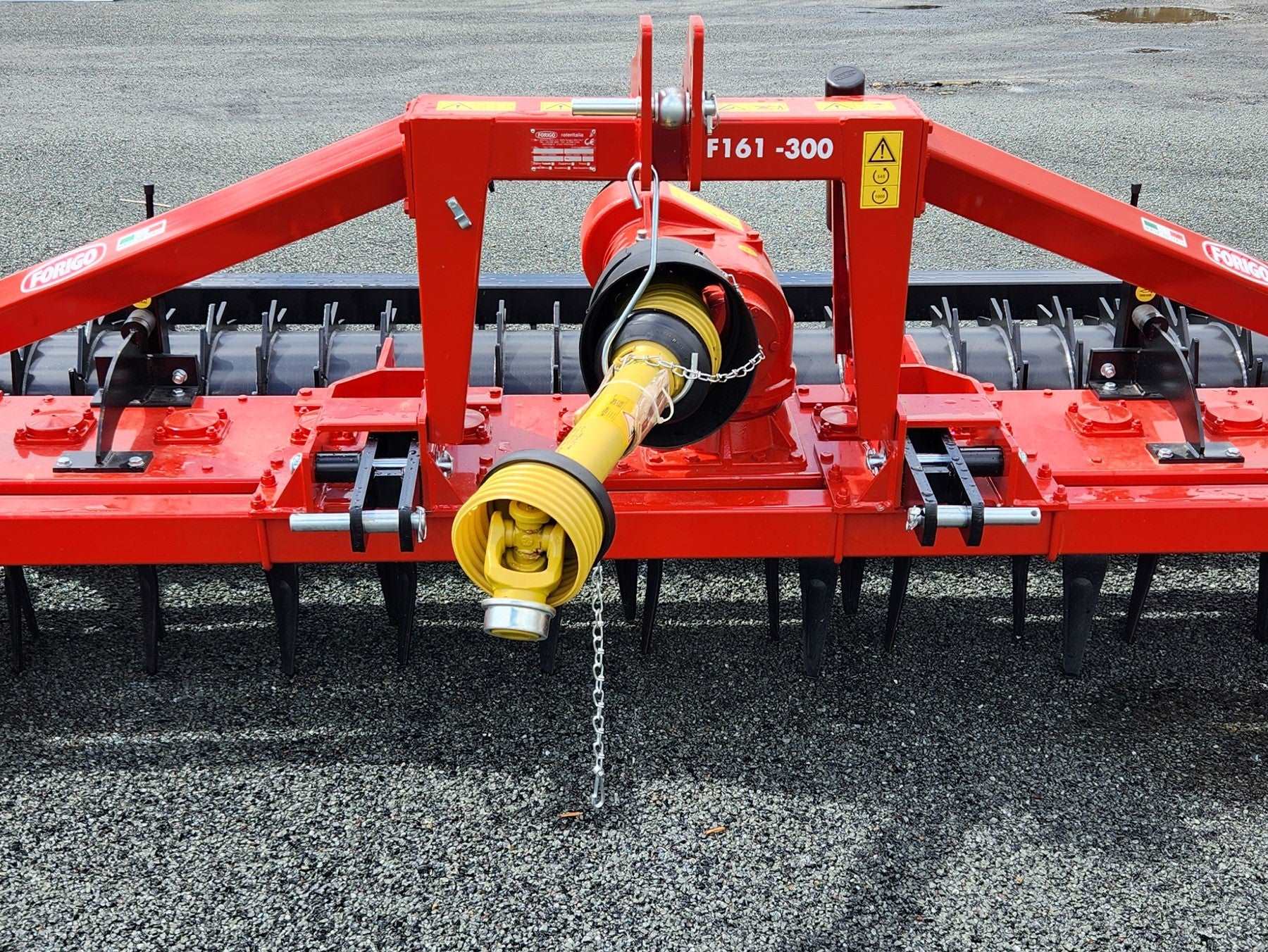

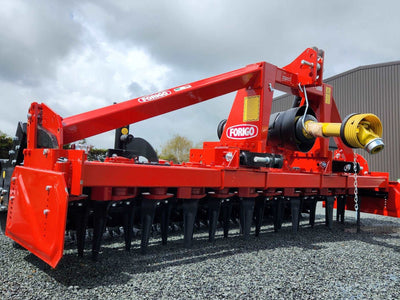

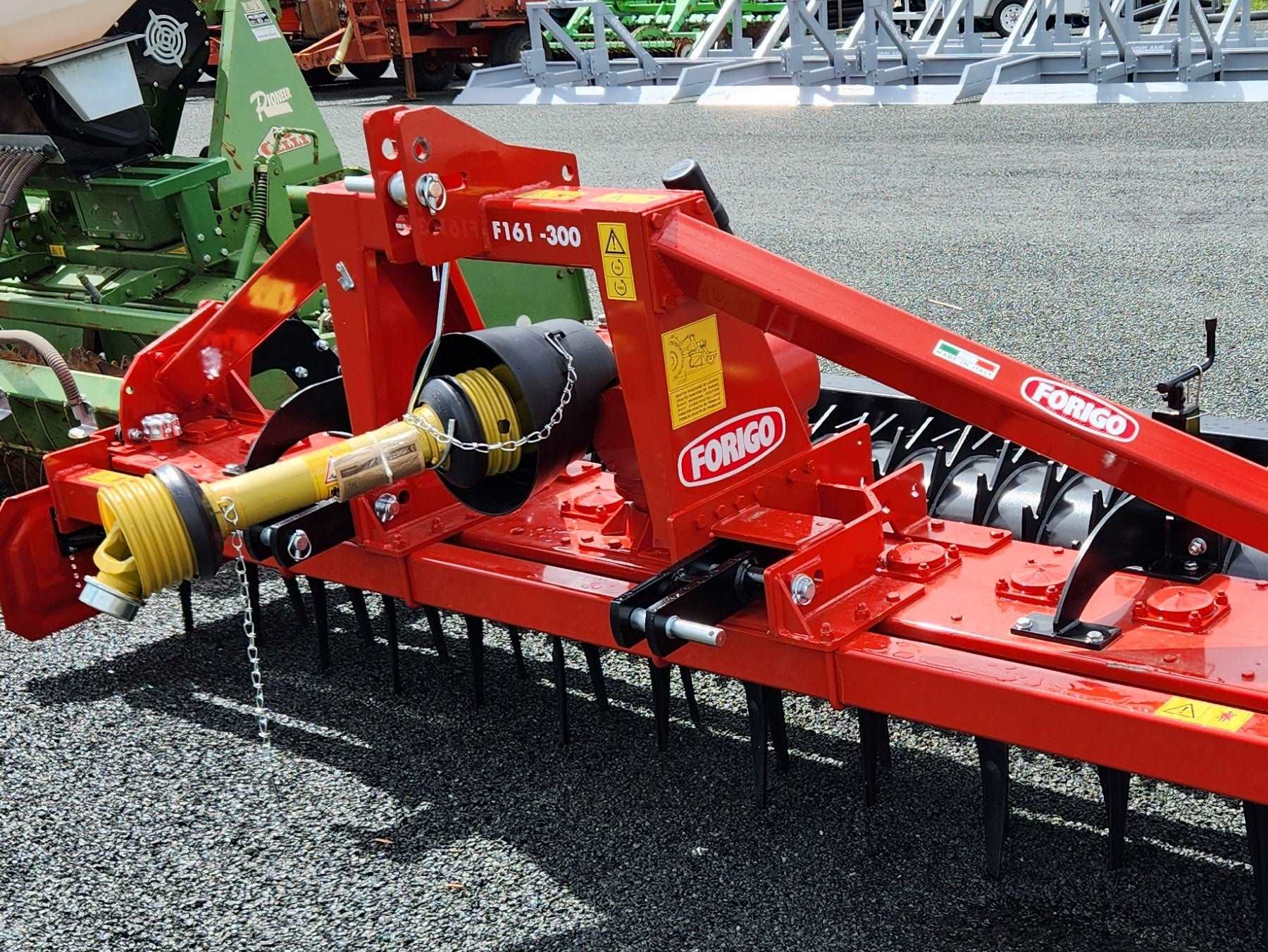

IN STOCK- F161-300- 3m Size



Model F161 - 300 F161 - 350 F161 - 400 F161 - 450
Working Width (cm) 298 348
398
448
Working Width (in) 117 137
157
176
Overall Width(cm) 303 353 403 453
Overall Width(in) 119 139 159 178
Tines 24 28
32
36
Weight - Cage Roller (Kg.) 1130 1225
1340
1515
Weight - Packer (Kg.) 1475
1545
1435
1925
RRP $POA $POA $POA $POA
